Motor
Motor
Bafang 500w 65Nm
Top Speed
20mph (default)
Configuration Class
1, 2, 3 (configurable)
Throttle
100% Power on Demand
Pedal Assist Level
3, 5, 7, or 9 levels (default 7)
Battery
Primary Battery
48v 15Ah Samsung 21700 50E Cell (720Wh)
Secondary Battery (Optional)
48v 15Ah Samsung 21700 50E Cell (720Wh)
Range*
Primary (Up to 50 miles) / Primary + Secondary (Up to 100 miles)
Charge Cycle
800
Charge Time
5 Hours
Frameset
Frame
6061 Aluminum Alloy
Fork
SR Suntour with Lockout
Wheels
Tire
Kenda with K-Shield Puncture Resistance
Tire Size
27.5" x 2.10"
Rim
Double Wall
Drivetrain
Shifter
Shimano Rapid Fire 7-Speed
Rear Derailleur
Shimano Acera
Crank
42T Single Guard

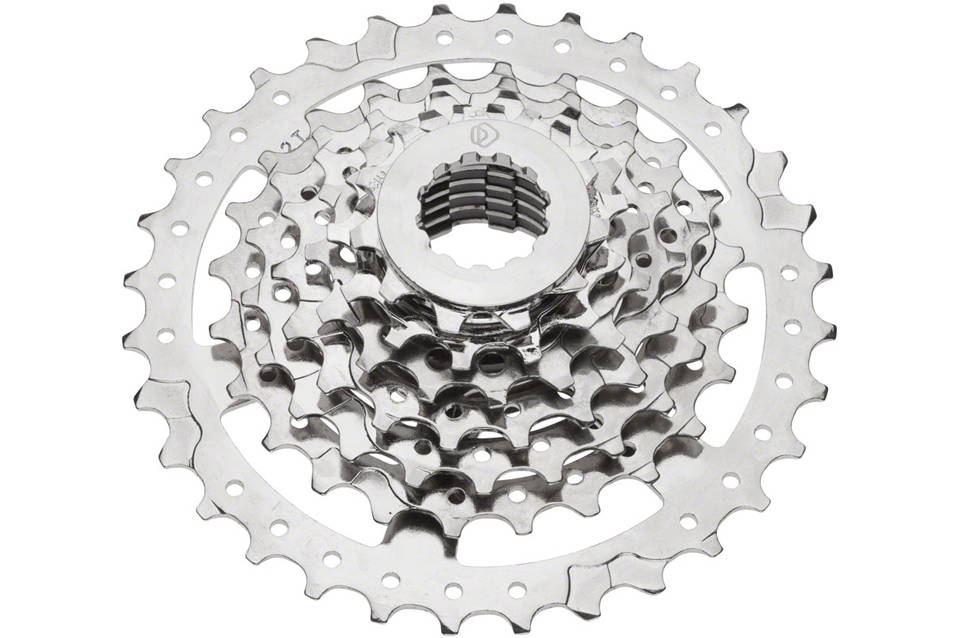

Freewheel
Nickel Plated 11-32T 7-Speed
Pedal
Wellgo Aluminum Platform
Components
Saddle
Selle Royal LOOKIN Basic (GEL)
Brake
Tektro Hydraulic Disc 180mm
Brake Lever
Safety Motor Inhibitors
Stem
Adjustable Stem High Rise
Seat Post
350mm x 31.6mm
Pedal Assist Sensor
Torque Sensor
Weight
Weight
65lbs (Including Battery)
Load Capacity
275lbs
* Range may vary and fluctuate depending on several factors - most notably the weight of the user, steepness, terrain, extent of power assist, and throttle use.
